Displaying red-white noise on 1.54" ePaper display #17
Description
I have the following code in micropython that is running on my Espressif ESP32-PICO-KIT. To this I have attached a WaveShare 1.54" ePaper display (supporting red color).
When I reach the last line the display updates in waves, but I only get white-red noise on the display.
I could (a few years ago) use the same hardware for a test using the Arduino platform.
This is my code:
from machine import Pin, SoftSPI
import epaper1in54b
miso = Pin(9) # not connected
sck = Pin(18) # yellow
mosi = Pin(23) # white
cs = Pin(5) # green
dc = Pin(25) # gray
rst = Pin(21) # orange
busy = Pin(19) # gray
spi = SoftSPI(baudrate=20000000, polarity=0, phase=0, sck=sck, mosi=mosi, miso=miso)
e = epaper1in54b.EPD(spi, cs, dc, rst, busy)
e.init()
w = 200
h = 200
x = 0
y = 0
import framebuf
buf = bytearray(w * h // 8)
fb = framebuf.FrameBuffer(buf, w, h, framebuf.MONO_VLSB)
black = 0
white = 1
red = 2
fb.fill(white)
fb.text('Hello world!', 0, 0,black)
e.display_frame(buf,None)

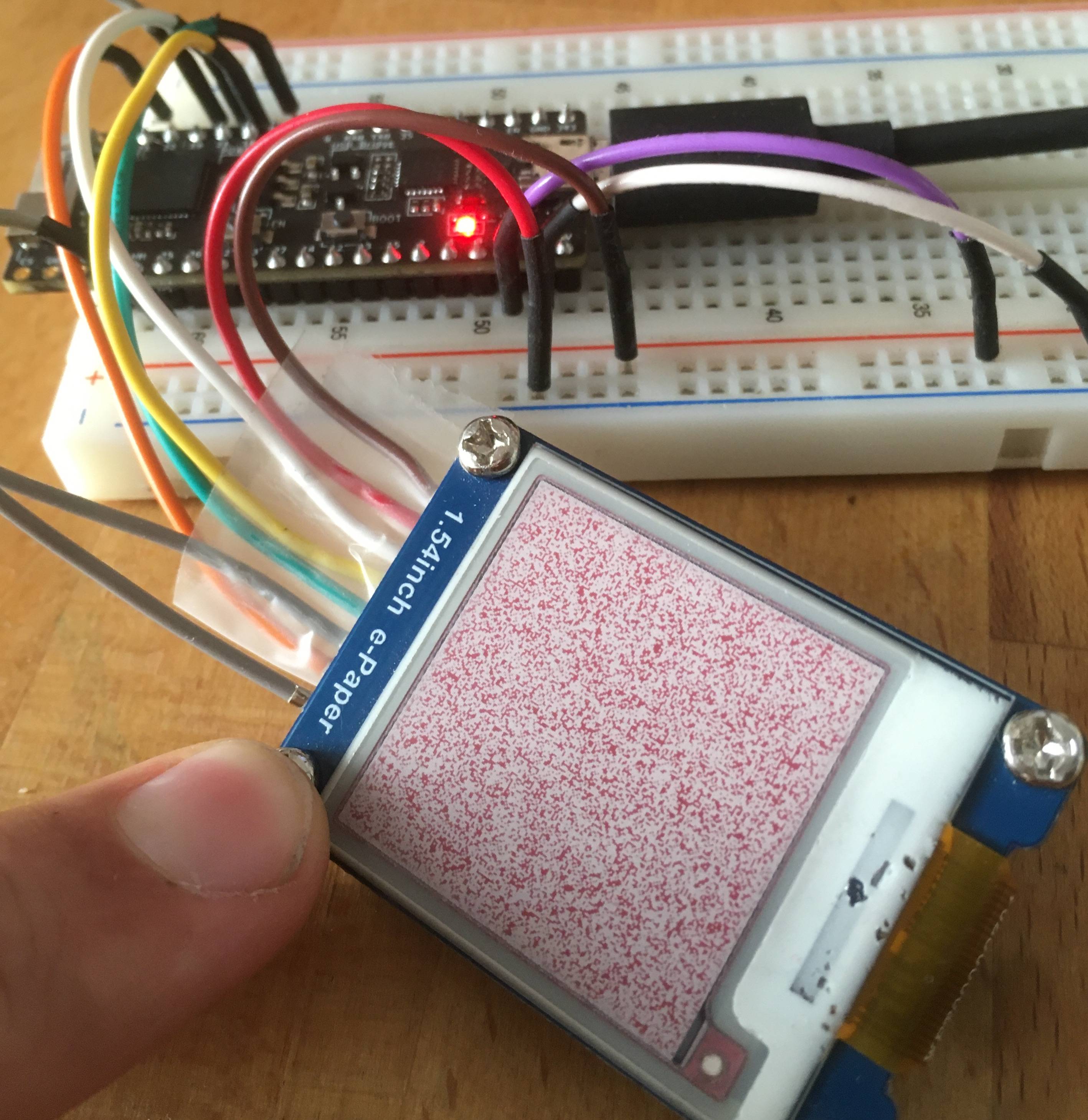

The result
Any help would be appreciated.
Im using MicroPython v1.16 on 2021-06-18; ESP32 module with ESP32
