social-aware-sensor-package

This code was written in order to recognize multiple faces expressions with 360 dualfisheye cameras. I used theta S camera - capturing 360 dualfisheye images with 15 fps.

I used ffmpeg to convert dualfisheye image to rectangular image. the mapping file was created by "projection.c" program which creates the files "fisheye_grid_ymap.pgm" and "fisheye_grid_xmap.pgm" you can find the program at the link: https://github.com/raboof/dualfisheye2equirectangular you can create a mapping file for several cameras and resolutions.

to use the microphone, you'll need to get permissions. For this: Add the user to plugdev group

sudo usermod -a -G plugdev $USER

create a new rule

sudo gedit /etc/udev/rules.d/99-social.rules

SUBSYSTEM=="usb", ATTR{idVendor}=="0fcf", ATTR{idProduct}=="1008", MODE="666", GROUP="plugdev"

in order to analayze expressions you need to get the affectiva ros node https://www.affectiva.com/

face detection algorithem was taken from https://realpython.com/face-recognition-with-python/

Running The Program

run:

python run.py

In order to read the data - echo from /omer_data topic

rostopic echo /omer_data

Explanation of the code

face_publisher.py:

Capture dualfisheye photos, converting them to rectangular, display the fixed picture, recognize faces and publish them as image messages to ros topic "/usb_cam/image/raw".

Affectiva ros node (not mine):

Subscribing to image message in topic "/usb_cam/image/raw", recognize emotions and expression, publish them to "/affdex_data" topic as "affdex_msgs" messages

aff_sub.py:

subscribing to affectiva message "/affdex_data" and find Person index of each person in the room. then publish the original affectiva data + Person Index + location + location of looking - as String messages to "/omer_data" topic. In addition, the code plotting graphs of one emotion depends on time to all the faces.

The topic "/omer_data":

Data:

• Time: from start running the code in seconds
• Person ID: index number of the recognized person
• location: x from 0 to 1920 of the person
• LookAt: x from 0 to 1920 of where the person is looking

Emotions: between 0 and 100, except for valence (-100 and 100)

• 0: Joy
• 1: Anger
• 2: Disgust
• 3: Contempt
• 4: Engagement
• 5: Fear
• 6: Sadness
• 7: Surprise
• 8: Valence

Expressions: between 0 and 100

• 0: Attention
• 1: BrowFurrow
• 2: BrowRaise
• 3: ChinRaise
• 4: EyeClosure
• 5: InnerBrowRaise
• 6: LipCornerDepressor
• 7: LipPress
• 8: LipPucker
• 9: LipSuck
• 10: MouthOpen
• 11: NoseWrinkle
• 12: Smile
• 13: Smirk
• 14: UpperLipRaise
• 15: jawDrop
• 16: lipStretch
• 17: dimpler
• 18: cheekRaise
• 19: eyeWiden
• 20: lidTighten

Measurements face orientation

• 0: InterocularDistance
• 1: Yaw
• 2: Roll
• 3: Pitch

Face_points elements of face points based on FACS units

• 0 Right Top Jaw
• 1 Right Jaw Angle
• 2 Gnathion
• 3 Left Jaw Angle
• 4 Left Top Jaw
• 5 Outer Right Brow Corner
• 6 Right Brow Center
• 7 Inner Right Brow Corner
• 8 Inner Left Brow Corner
• 9 Left Brow Center
• 10 Outer Left Brow Corner
• 11 Nose Root
• 12 Nose Tip
• 13 Nose Lower Right Boundary
• 14 Nose Bottom Boundary
• 15 Nose Lower Left Boundary
• 16 Outer Right Eye
• 17 Inner Right Eye
• 18 Inner Left Eye
• 19 Outer Left Eye
• 20 Right Lip Corner
• 21 Right Apex Upper Lip
• 22 Upper Lip Center
• 23 Left Apex Upper Lip
• 24 Left Lip Corner
• 25 Left Edge Lower Lip
• 26 Lower Lip Center
• 27 Right Edge Lower Lip
• 28 Bottom Upper Lip
• 29 Top Lower Lip
• 30 Upper Corner Right Eye
• 31 Lower Corner Right Eye
• 32 Upper Corner Left Eye
• 33 Lower Corner Left Eye

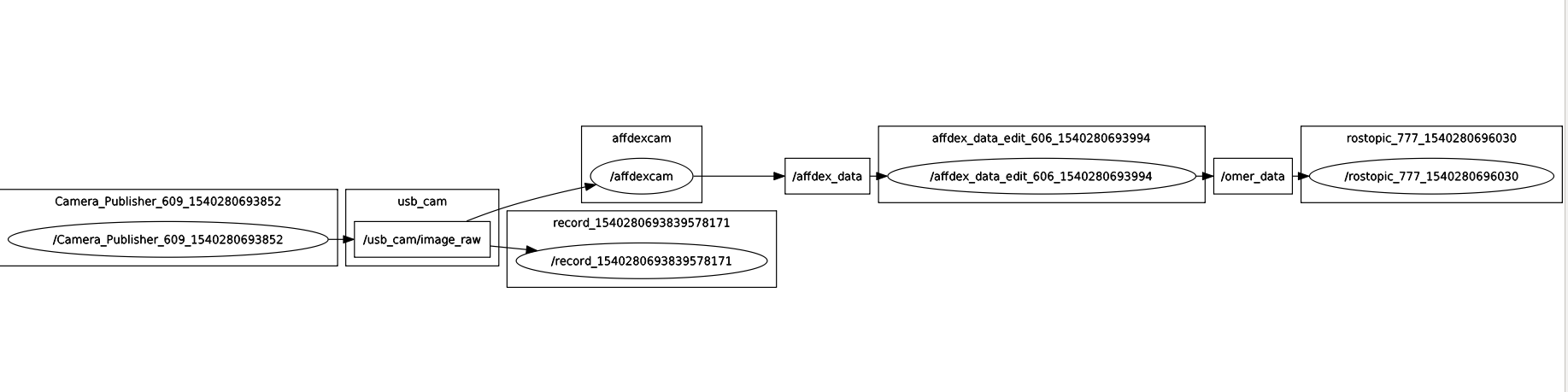

rqt graph:
