StreamXBot

A Self Hosted Telegram WebApp Streaming bot that lets you listen to music directly in the browser, even without Telegram. (free of cost)

• Frontend: MisfiT2020/StreamXWeb
• Support: Group

Register your Render deployment URL at Cron to keep your service awake and avoid cold starts.

---

Features

• Telegram-free web app: use StreamX directly in the browser, even without Telegram.
• Fast music discovery with browse, search, and shuffle modes.
• Curated daily playlists plus playlist-based exploration.
• Smooth track streaming with quick warm-up playback support.
• Built-in lyrics view for supported songs.
• Personal listening space with favourites and top-played history.
• Create, edit, and manage your own custom playlists.

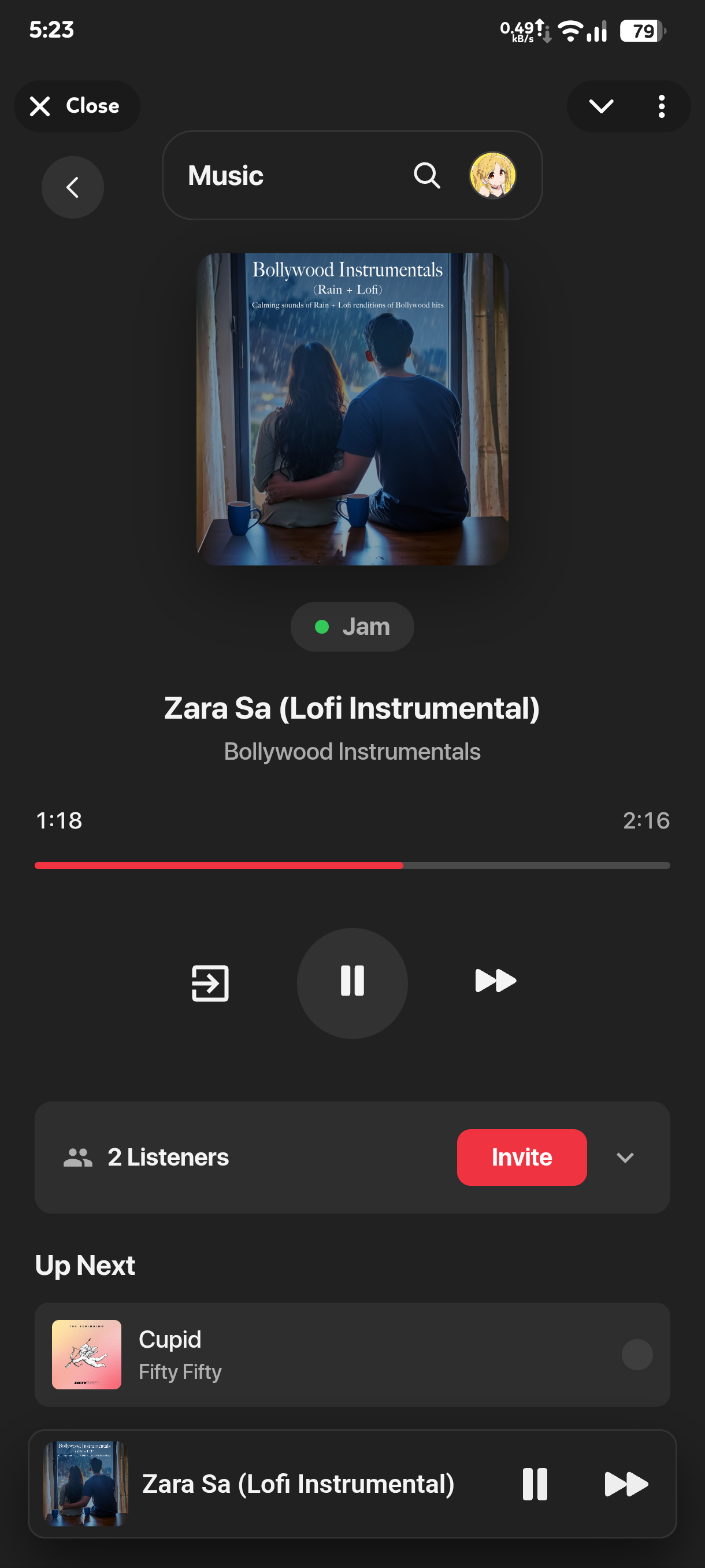

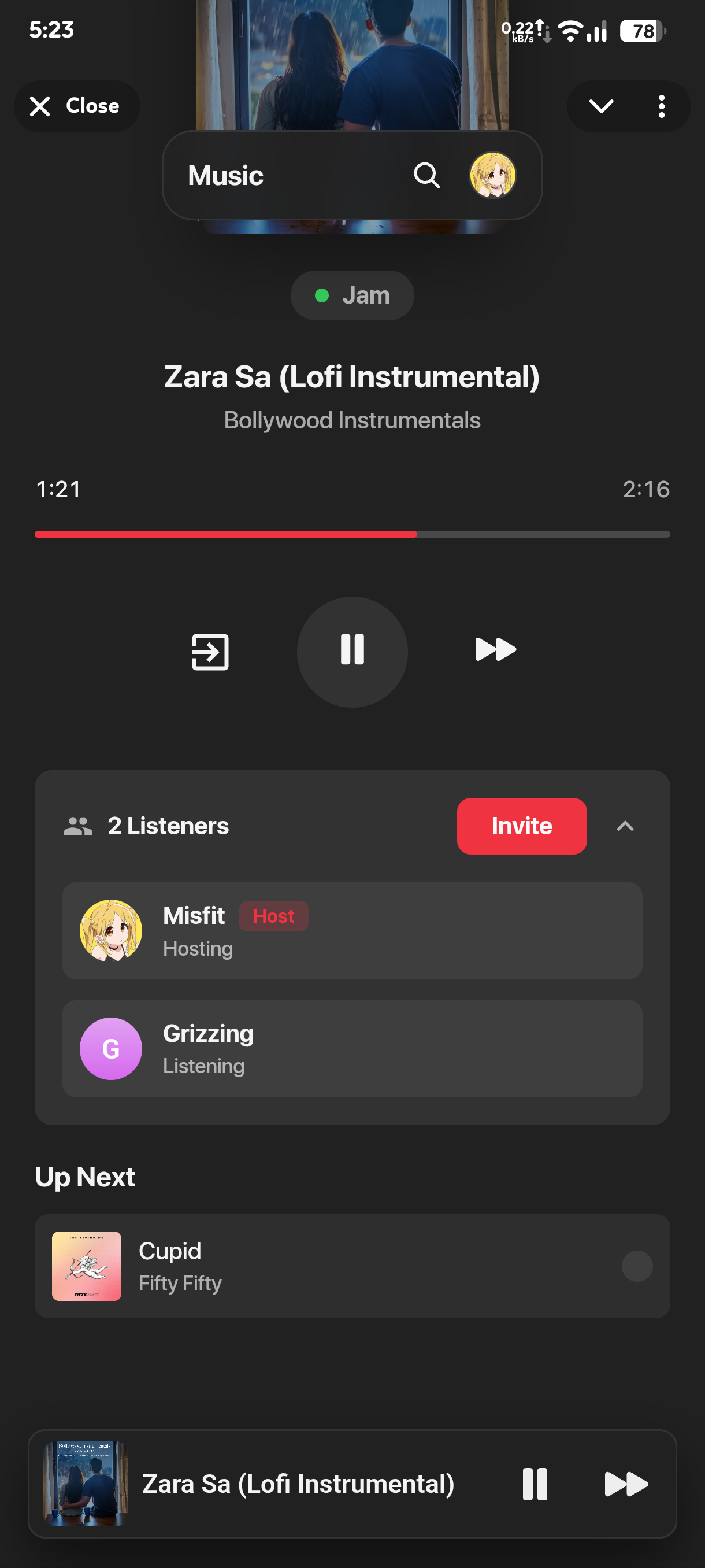

• Real-time Jam rooms for synchronized group listening and queue control.

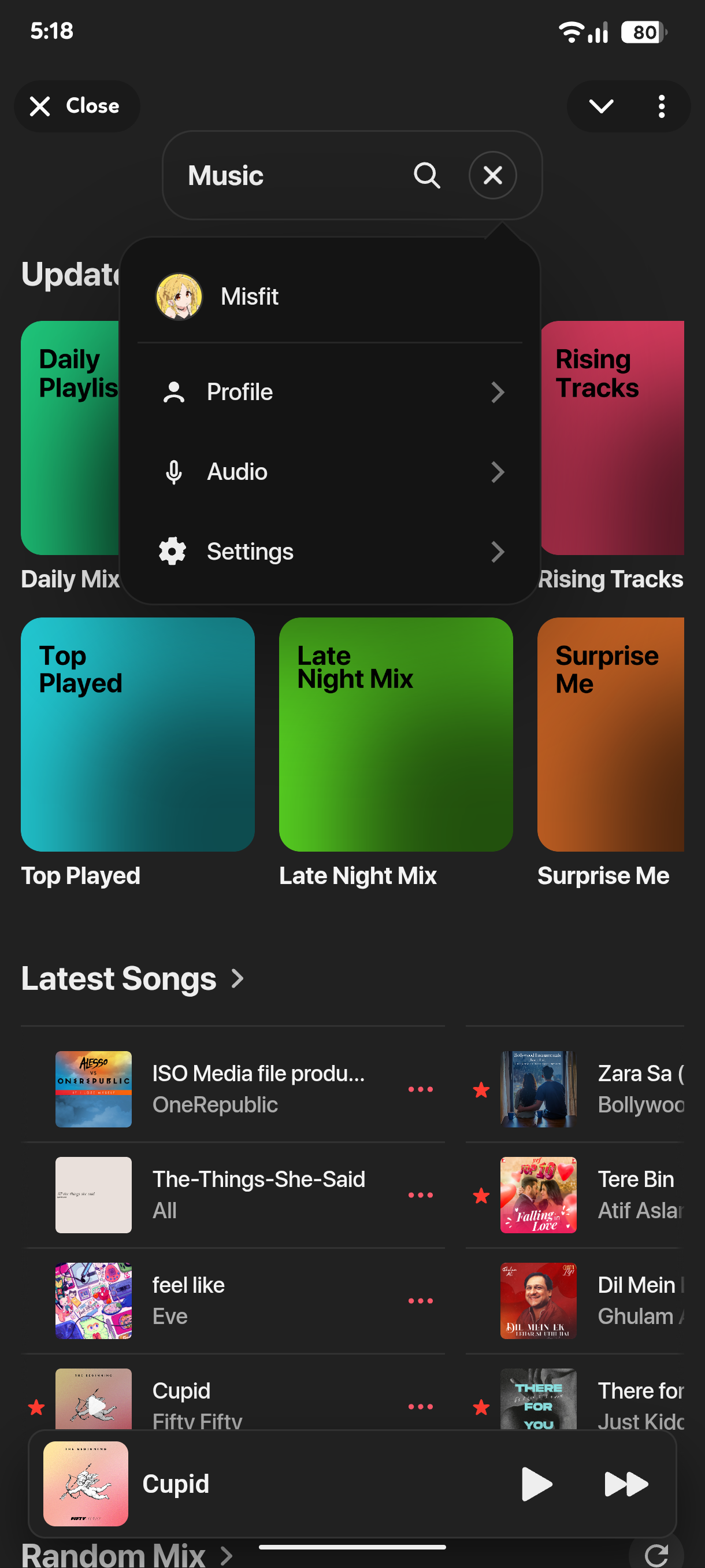

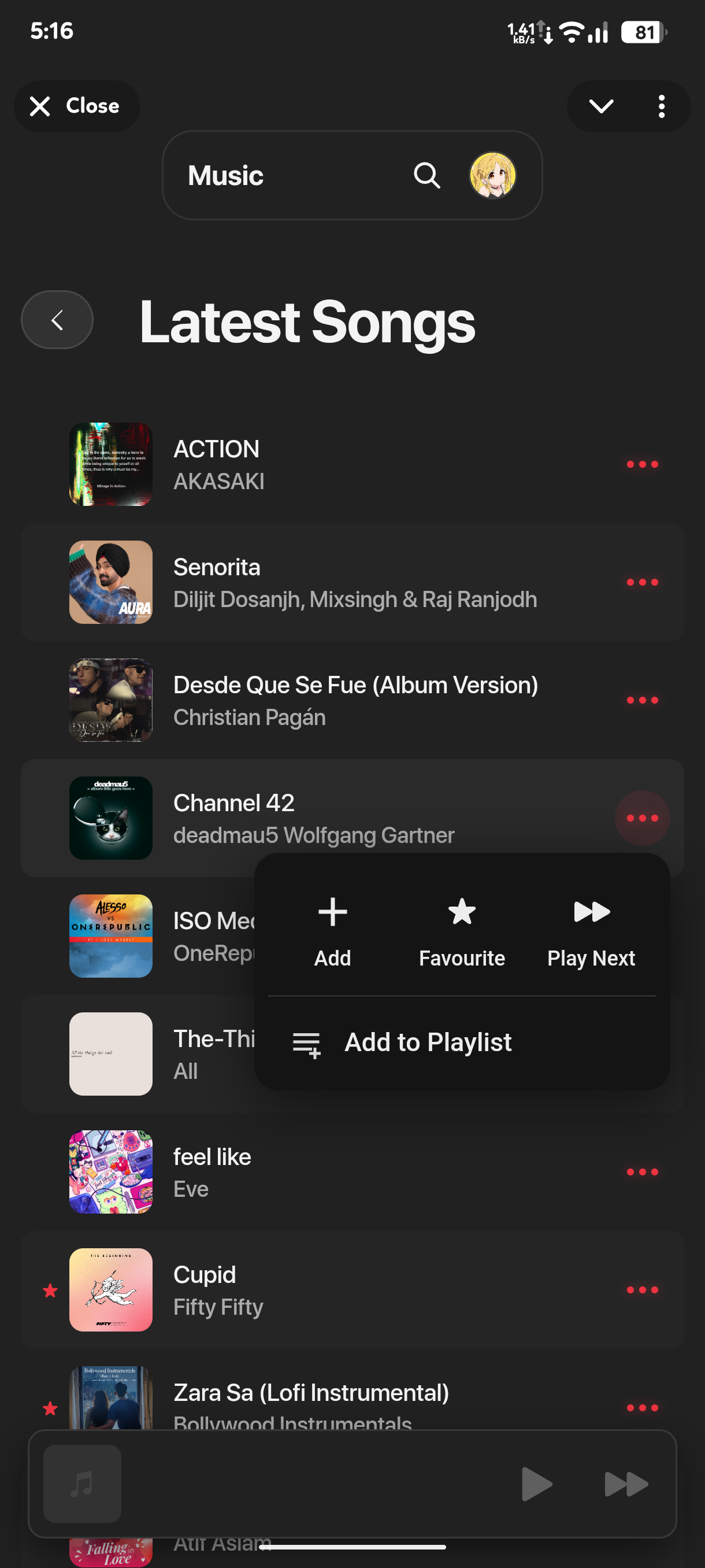

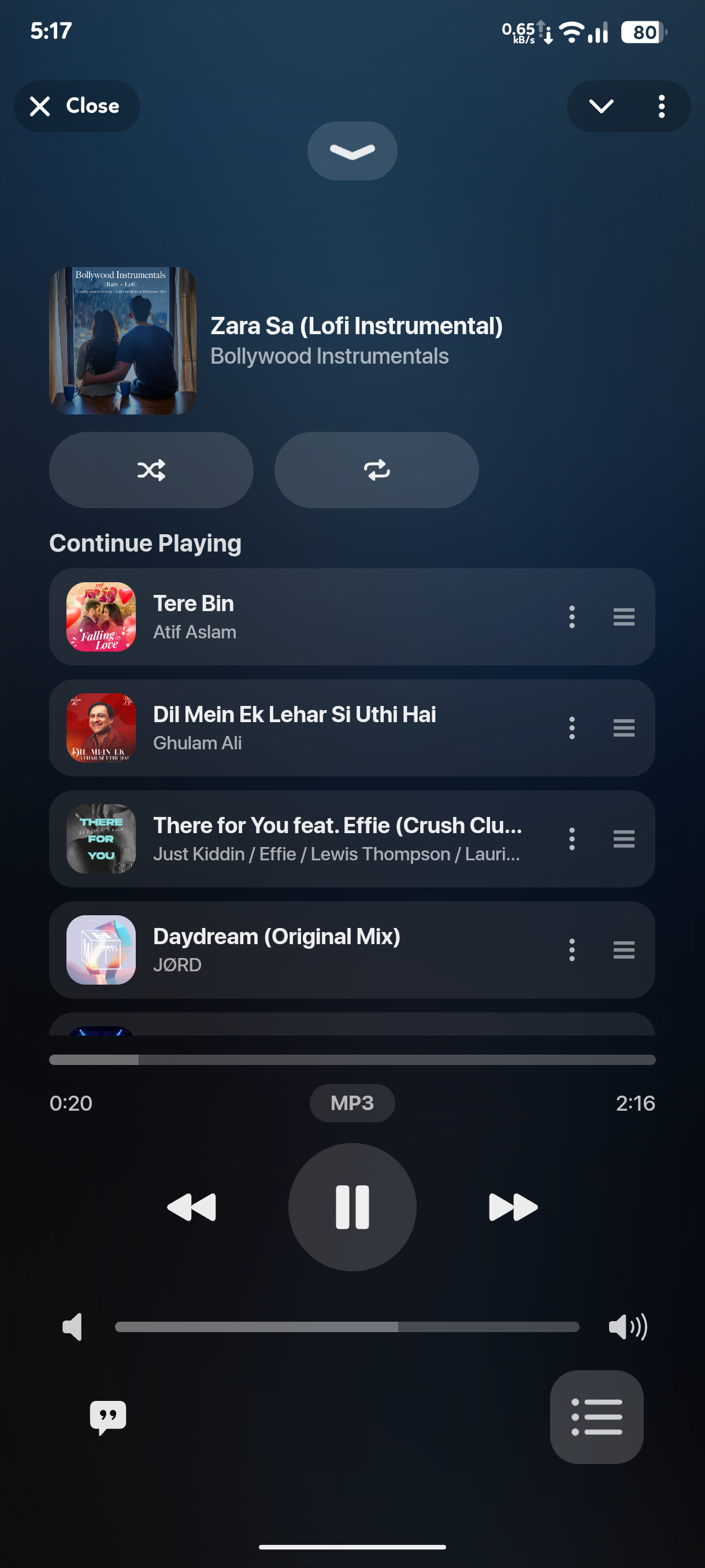

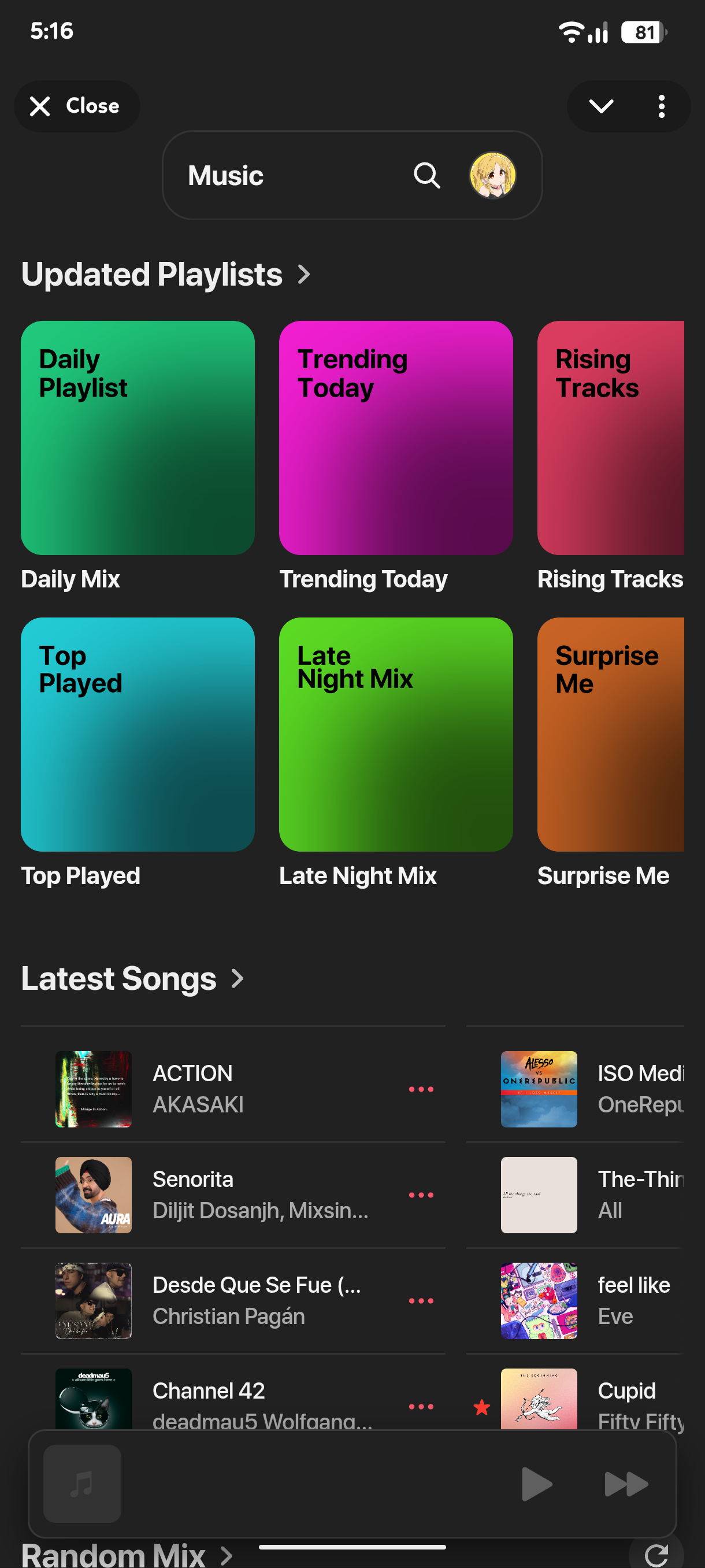

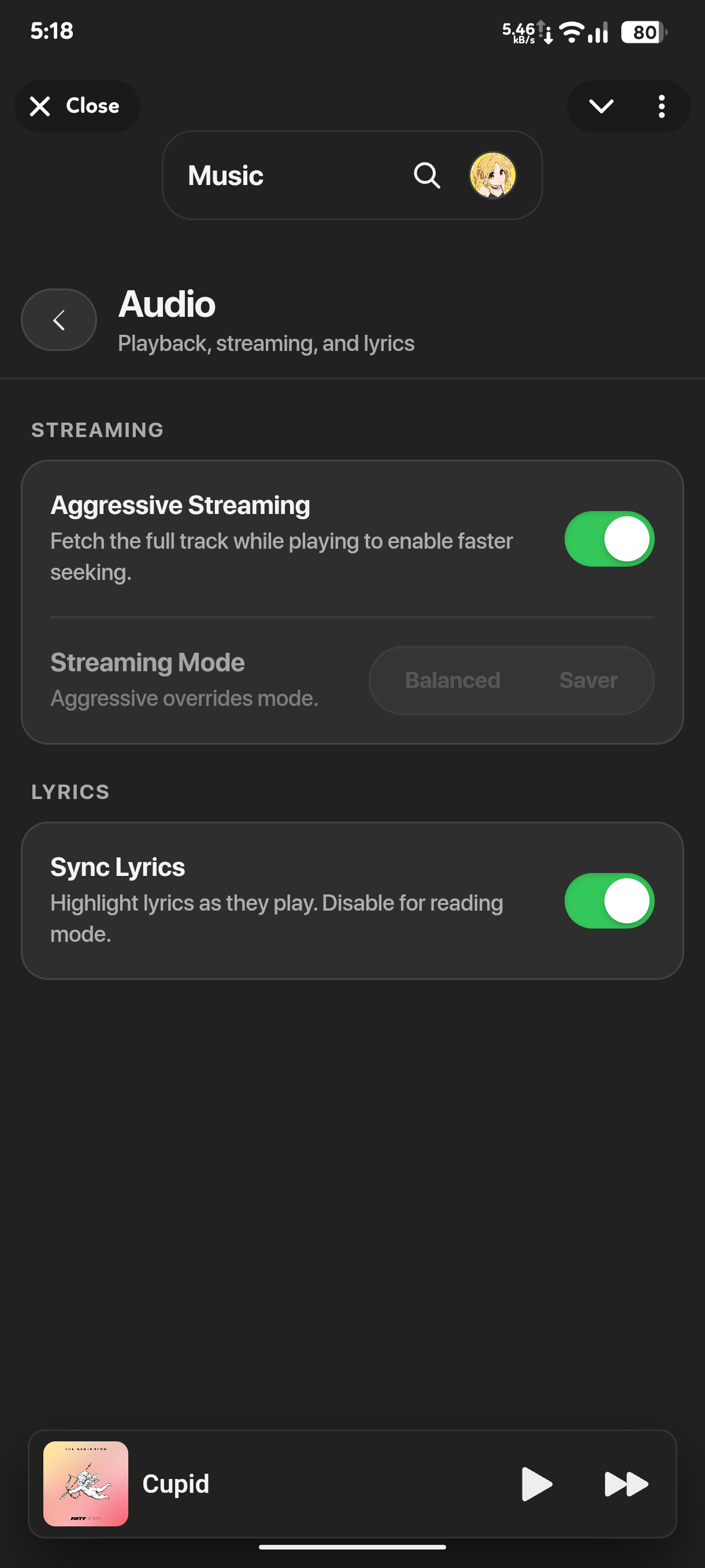

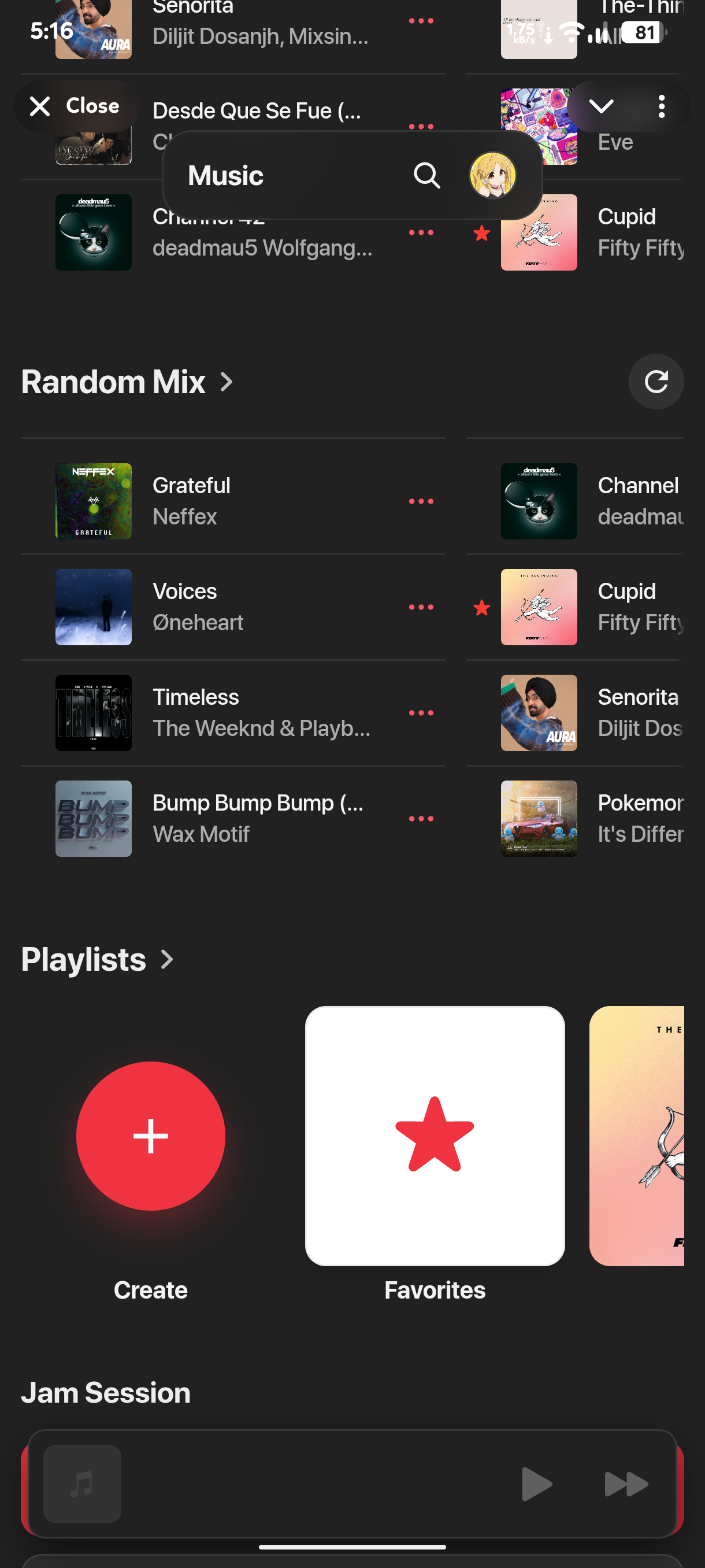

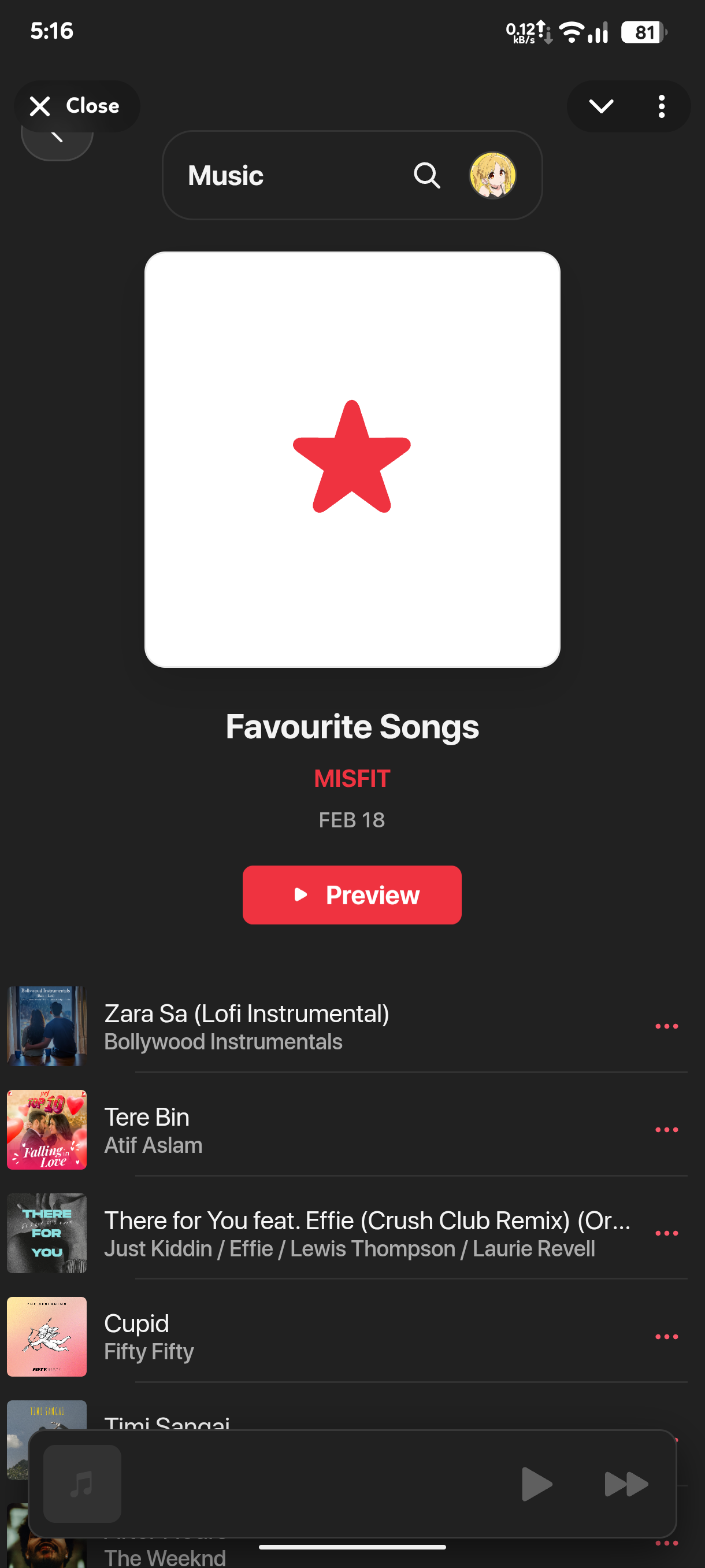

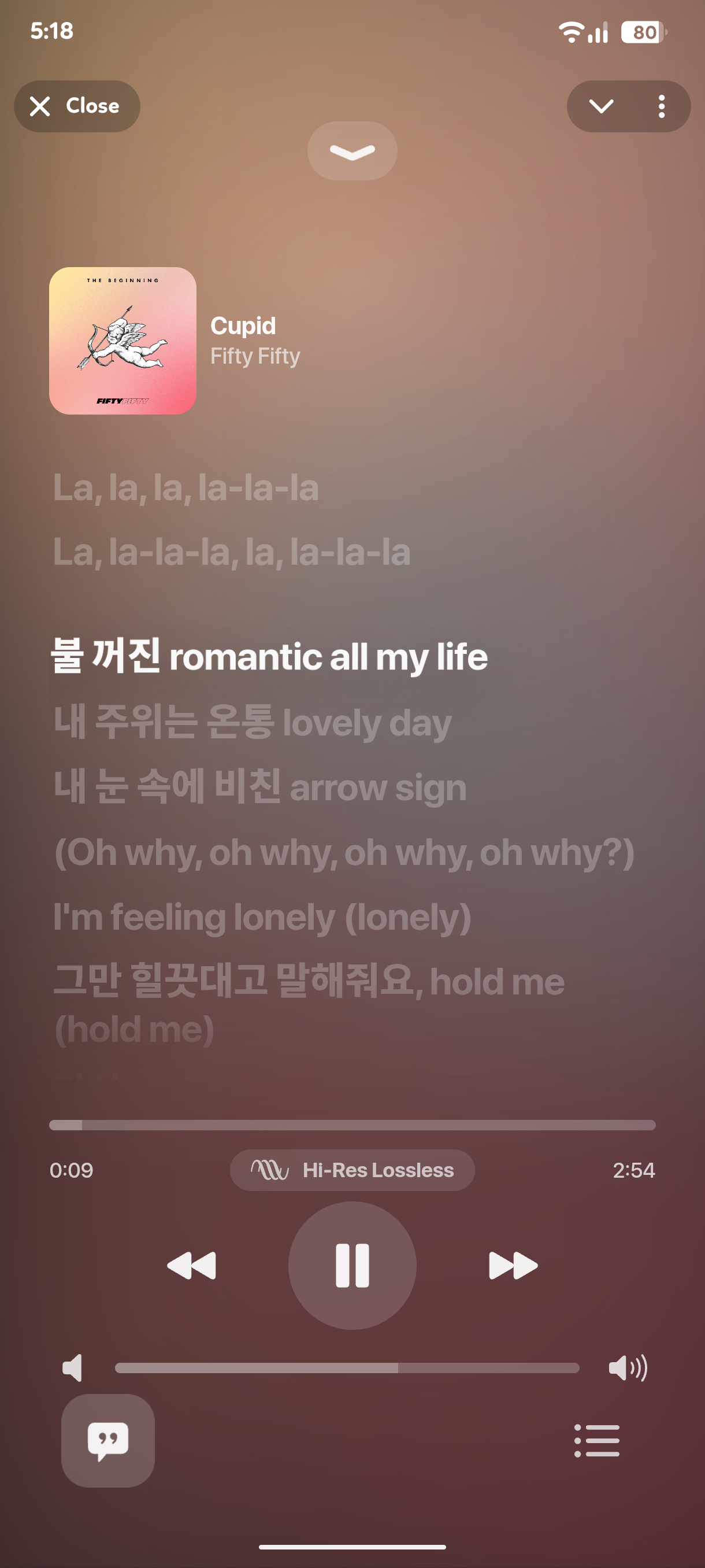

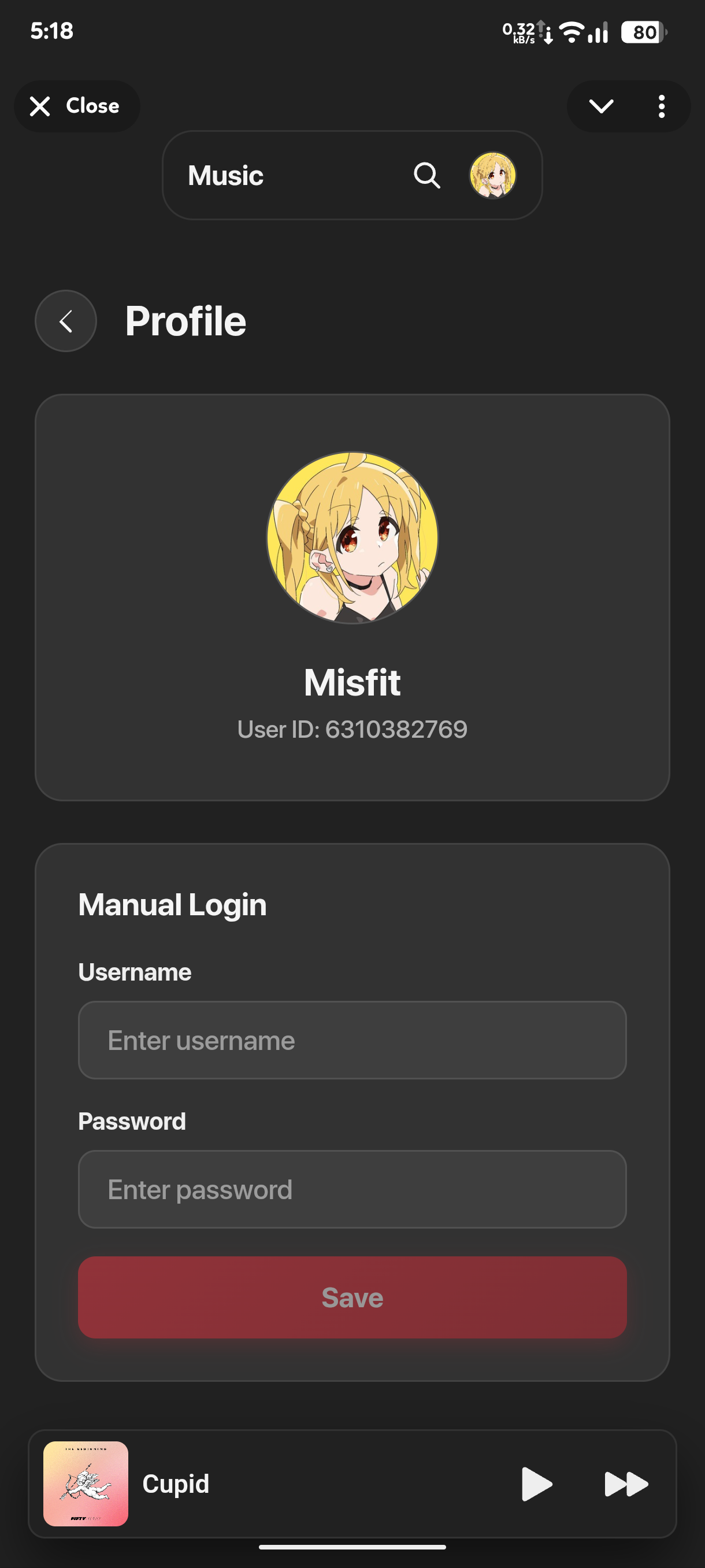

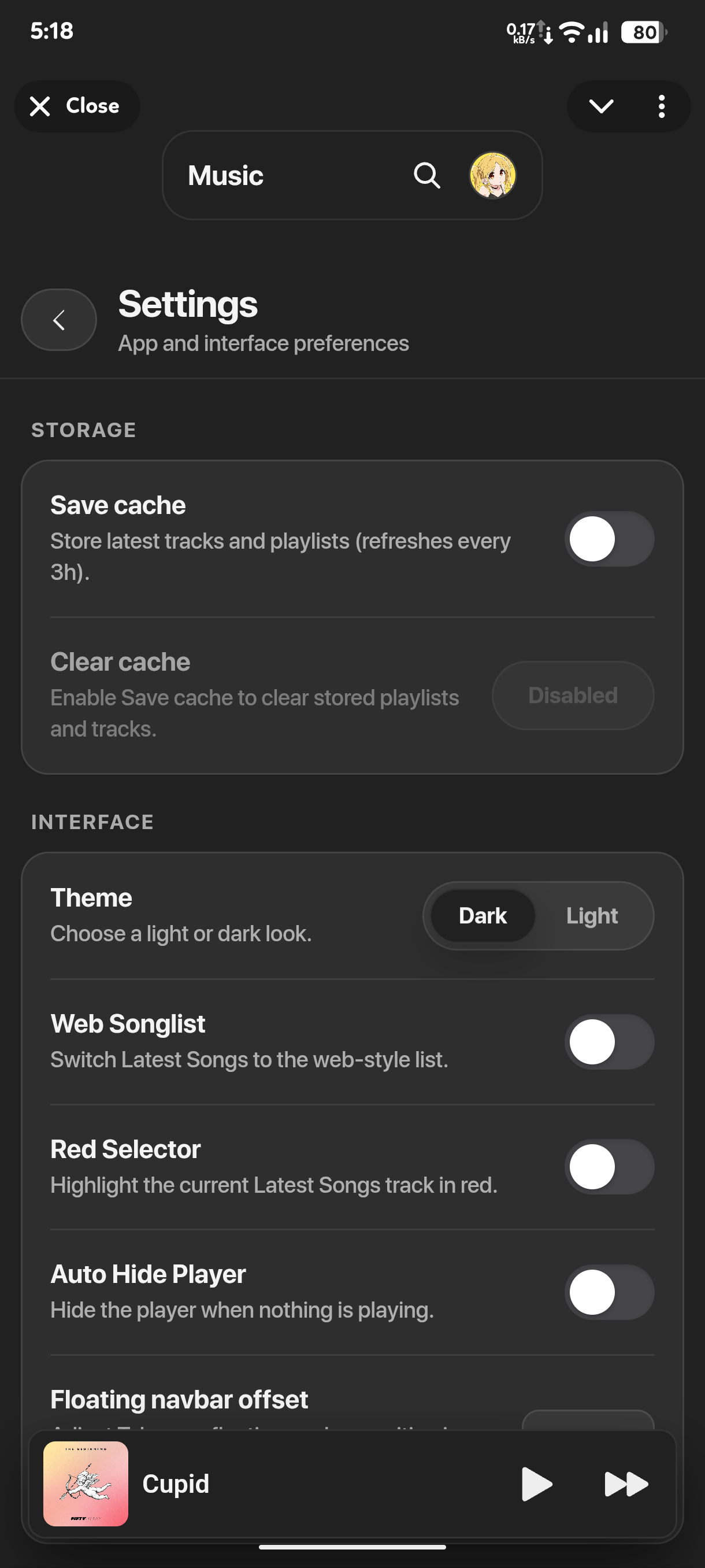

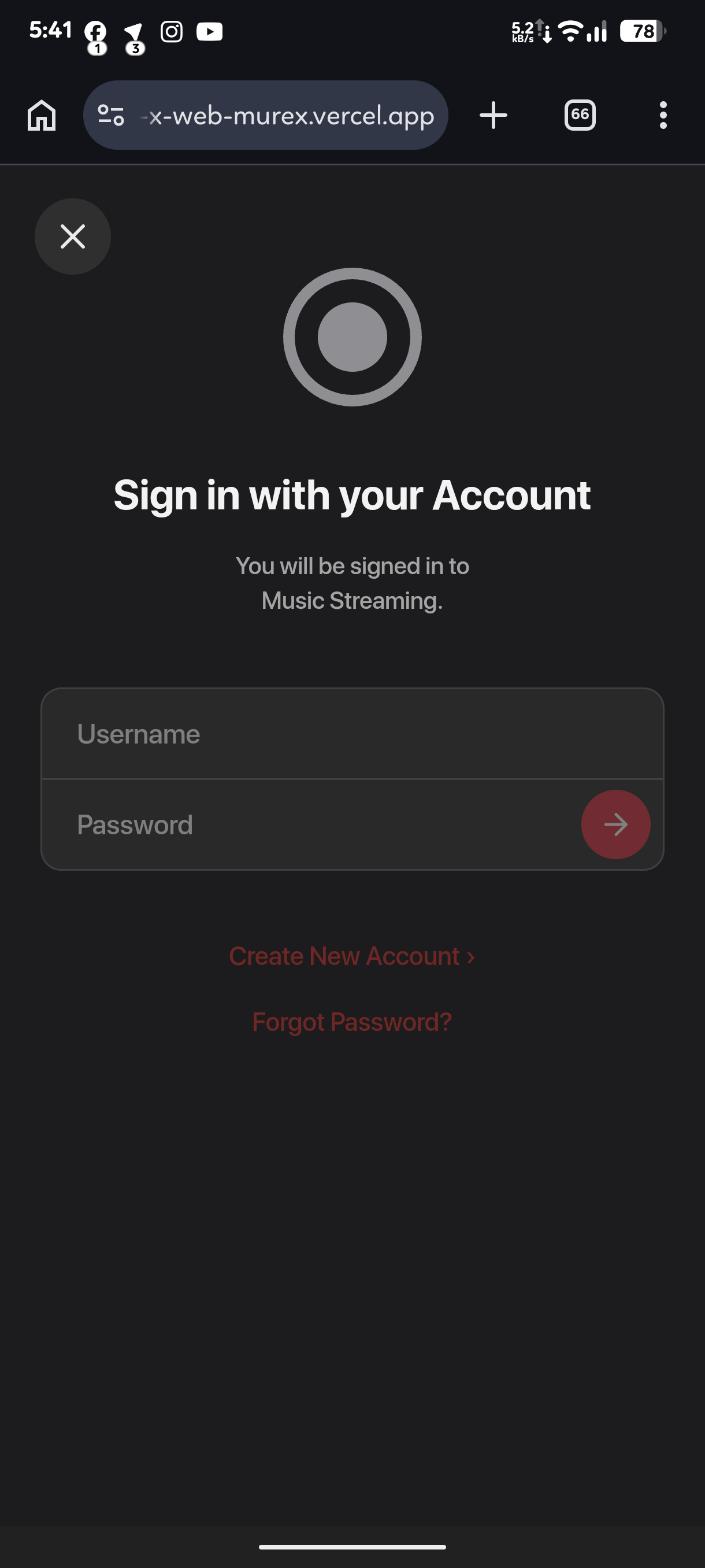

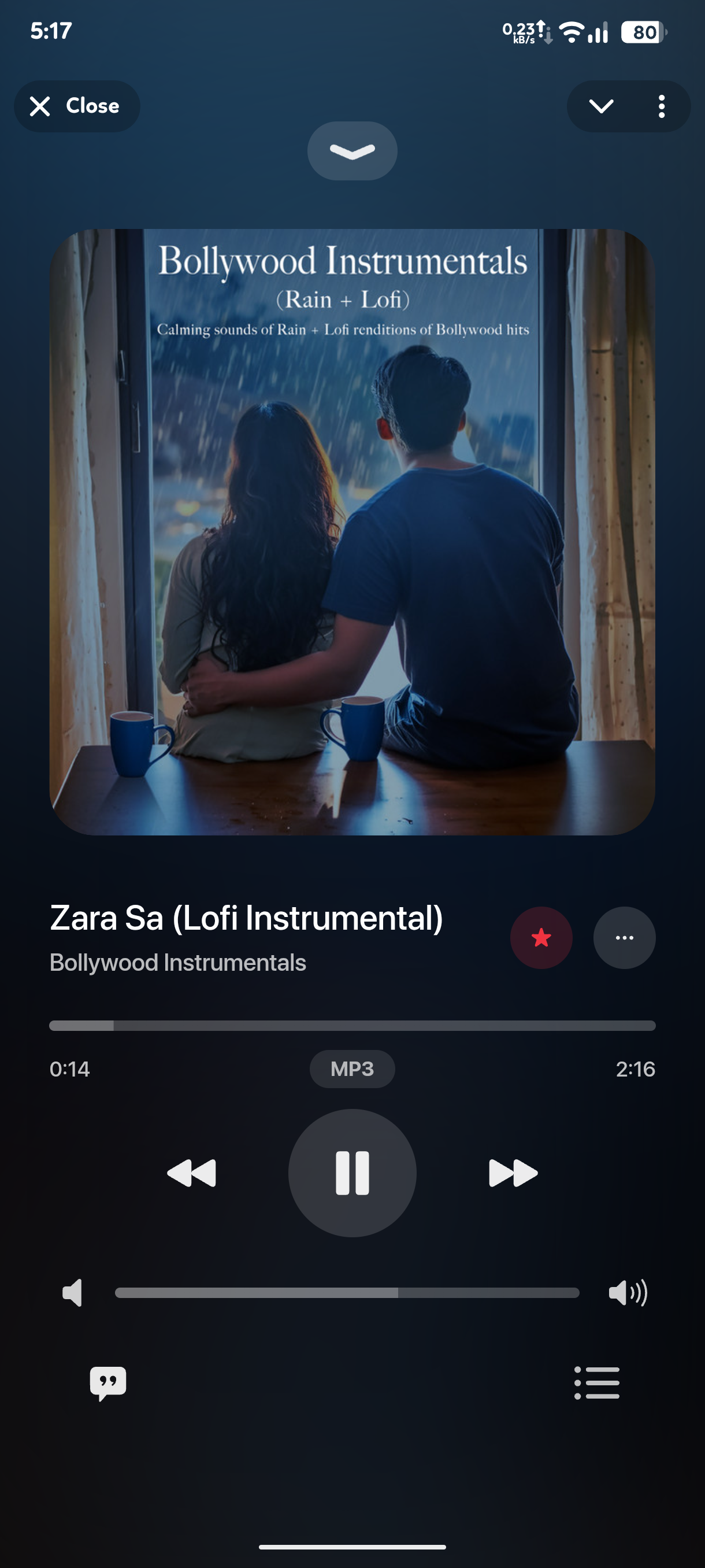

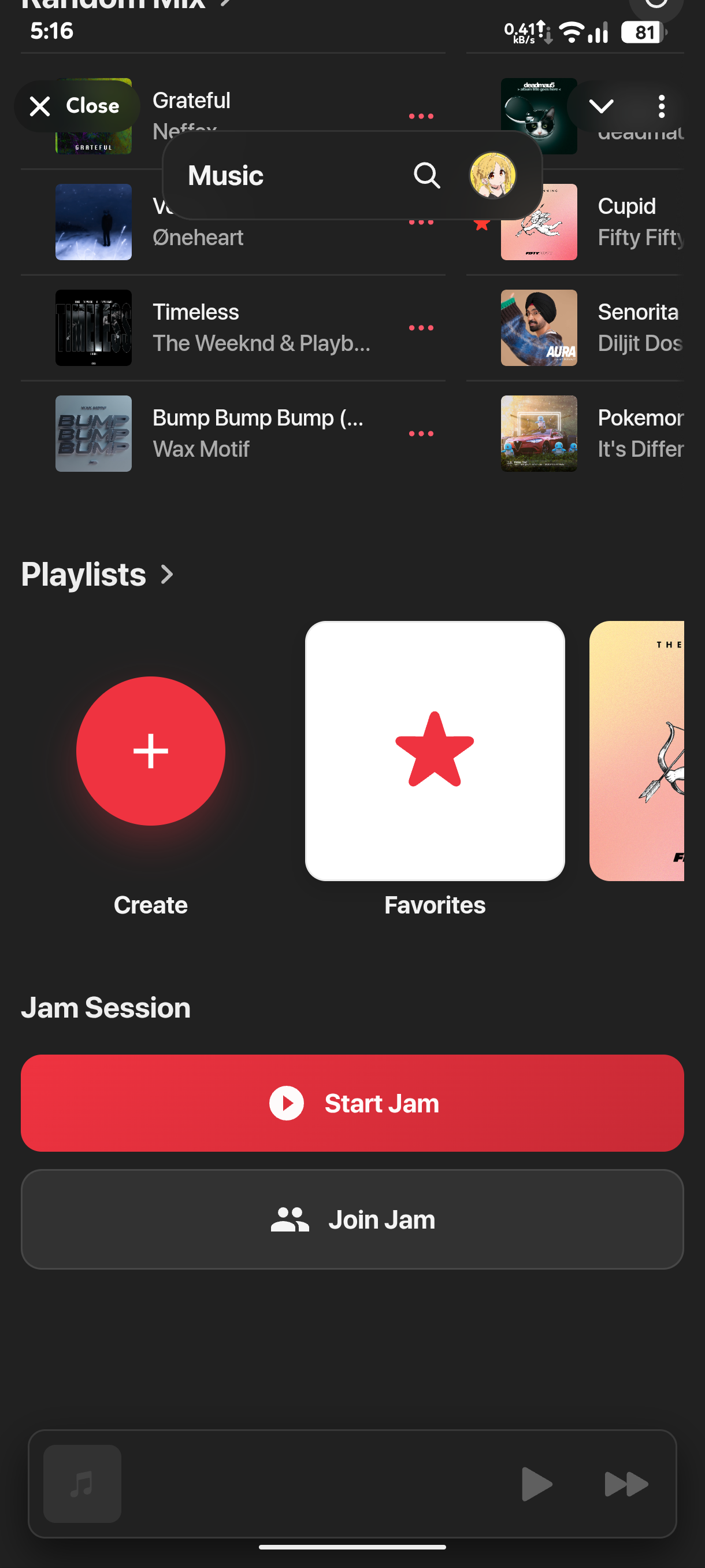

Preview

1	2	3

4	5	6

7	8	9

10	11	12

13	14	15

API REQUIRED

• Cloudinary for thumbnail storage.
• Spotify API for music metadata.

BOT COMMANDS

• /ping - Ping the bot to check if it's alive.
• /bs - to get the bot settings and edit the vars without deploying again.
• /restart - to restart the bot.

Configuration

Show

API RELATED

• SPOTIFY_CLIENT_ID (Spotify API client ID)
• SPOTIFY_CLIENT_SECRET (Spotify API client secret)
• CLOUDINARY_CLOUD_NAME (Cloudinary cloud name)
• CLOUDINARY_API_KEY (Cloudinary API key)
• CLOUDINARY_API_SECRET (Cloudinary API secret)

BOT RELATED

• BOT_TOKEN (Telegram bot token, 123456:ABC...)
• API_ID (integer)
• API_HASH (string)

BACKEND RELATED

• CHANNEL_ID to fetch the tracks from.
• MONGO_URI (mongodb://... or mongodb+srv://...)
• OWNER_ID (one ID or a list; the loader turns it into a list)
• DATABASE_NAME
• MULTI_CLIENT (True/False) to stream via multiple Bots and load balancing
• MULTI_CLIENTS_1, MULTI_CLIENTS_2, ... (additional bot tokens/session strings for multi-client mode)
• MUSIXMATCHOR LRCLIB to get lyrics: MUSIXMATCH OVERRIDES LRCLIB
• DUMP_CHANNEL_ID Dumps the Tracks into this channel when multiclient bot doesn't have the track in its database.
• SUDO_USERS (user with sudo access)
• ONLY_API (True/False) to only use the API and disable the bot.
• DEBUG (True/False) to enable debug mode.

SESSION RELATED (FRONTEND) (Optional)

• SECRET_KEY (for session storage)
• COOKIE_SECURE (True/False) to enable secure cookies.
• CORS_ORIGIN to allow domain
• COOKIE_SAMESITE if the backend/frontend are on different domains, set this to none and COOKIE_SECURE to true.

USERBOT

• SESSION_STRING (enables the userbot worker)
• SOURCE_CHANNEL_IDS for userbot to dump tracks from one or more channels.

---

Deployment

Fork this repo, then clone your fork for deployment (so your own changes and secrets stay in your repo).

• Render & Heroku: CONFIG_GIST – provide a raw GitHub Gist URL that contains a complete config.py.
  At build time the gist is downloaded and written to config.py, letting you keep secrets out of the repo.

Render (recommended)

Create a new Web Service:

• Runtime: Docker
• Build command: (Render detects Dockerfile)
• Start command: default (runs start.sh)

Set environment variables in Render dashboard:

• Required: CONFIG_GIST with a raw GitHub Gist URL that contains a complete config.py.
• For frontend: set CORS_ORIGINS to your frontend domain (example: https://your-frontend.vercel.app)

VPS (Docker Compose)

1. Install Docker + Docker Compose on the VPS
2. Clone the backend repo
3. Copy sample_config.py to config.py and fill in the required variables
4. Run:

Heroku (GitHub Actions + Docker)

This repo ships a workflow: heroku-docker.yml.

Behavior:

• If Heroku secrets are present, it builds/pushes/releases the Docker image
• If secrets are missing, it skips Heroku steps and the workflow still passes

To enable Heroku deploy, add GitHub repo secrets:

• HEROKU_APP_NAME
• HEROKU_API_KEY (or HEROKU_KEY)

Optional:

• CONFIG_GIST = a raw GitHub Gist URL pointing to a config.py-style file. If set, the workflow converts it into Heroku config vars and applies them before releasing.

Quick health check

Once deployed, the API should respond:

• GET /health → {"status":"ok", ...} (see health.py)

Example:

curl -sS https://YOUR_BACKEND_URL/health

---

Frontend deployment (Vite / Vercel / Netlify)

Frontend source in MisfiT2020/StreamXWeb and calls this backend.

Required frontend env var

Set this in your frontend build env:

• VITE_API_BASE_URL = your backend base URL

BOT CONFIGURATION

Follow these steps to set MiniApp in the bot:

• Open your bot on BotFather
• Go to Bot Settings > Configure Mini App > Edit Mini App URL
• Set the Mini App URL to your frontend domain (example: https://your-frontend.vercel.app)
• Go to Change Mode > Set it to "Full Screen" for better experience.

Screenshots

1

2	3	4

5	6	7
