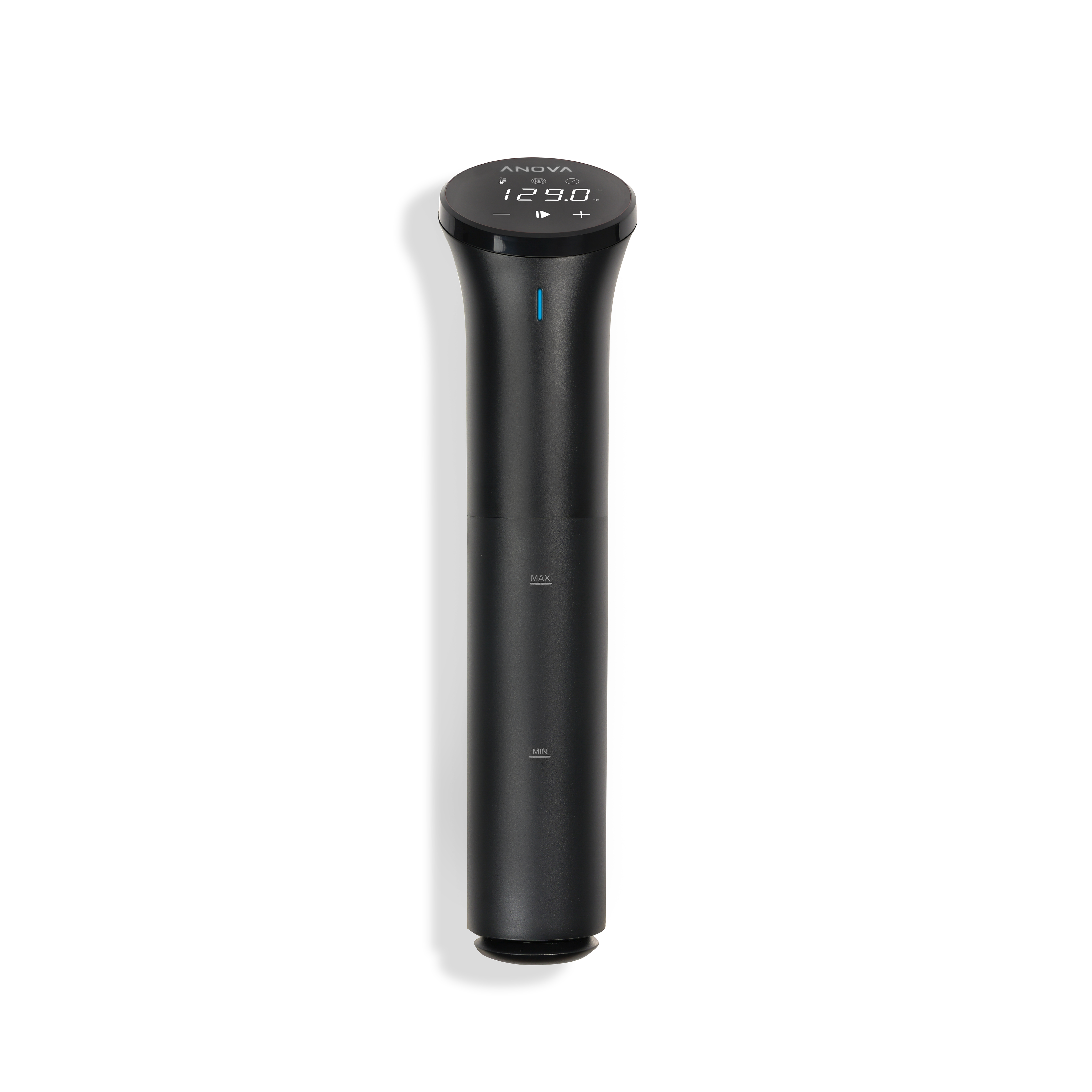

Anova Precision® Cooker Nano BTLE Interface

A complete Bluetooth Low Energy (BTLE) interface for the Anova Precision® Cooker Nano sous vide cooker. This module provides automated device discovery, connection management, and an interactive command interface to control and monitor your Anova Precision® Cooker Nano.

Features

• Auto-Scanning & Connection: Automatically discovers nearby Anova devices and establishes a connection
• Real-Time Monitoring: Retrieve sensor readings (water temperature) and device status
• Full Device Control: Start/stop cooking, set target temperature, cooking timer, and temperature unit
• Firmware Management: Query and display the device's firmware information
• Robust Communication: Uses Protocol Buffers for data serialization and COBS for message framing

Requirements

• Python 3.9 or higher
• Bleak library for Bluetooth LE communication

Installation

1. Install Python Dependencies:

   pip install bleak

2. Clone/Download the Repository:

   git clone https://github.com/yourusername/developer-project-nano.git
   cd developer-project-nano

Usage

Interactive Mode

Run the module directly to start the interactive command loop:

python nano-interactive.py

Available commands:

• START - Begin the cooking process
• STOP - End the cooking process
• GET_SENSORS - Retrieve current sensor values (water temperature)
• READ_TARGET_TEMP - Get the current target temperature
• READ_UNIT - Get the temperature unit (C/F)
• READ_TIMER - Get the remaining cooking time
• GET_FIRMWARE_INFO - Retrieve firmware details
• SET_UNIT [C|F] - Set the temperature unit
• SET_TEMP [value] - Set a new target temperature
• SET_TIMER [minutes] - Set the cooking timer

Type exit to quit the interactive session.

Programmatic Usage

from anova_nano import AnovaNanoDevice

# Discover and connect to a device
device = AnovaNanoDevice.discover_and_connect()

# Get current temperature
temp_unit = device.get_temp_unit()
target_temp = device.read_target_temp()
print(f"Target temperature: {target_temp}°{temp_unit}")

# Set new temperature (in the current unit)
device.set_target_temp(65.5)

# Start cooking
device.start_cooking()

# Get water temperature and device status
status = device.get_status()
print(f"Water temperature: {status['water_temp']}°{temp_unit}")

# Disconnect when done
device.disconnect()

Architecture

The code is organized into several key components:

• NanoConstants: Defines BTLE-related constants (UUIDs, scaling factors, timeouts)
• SensorValue Dataclass: Wraps sensor readings with conversion to/from Protocol Buffer messages
• COBS Functions: Handles message framing for robust communication
• AnovaNanoDevice Class: Encapsulates device communication and control methods
• Interactive Loop: Provides a user-friendly command-line interface

Communication Protocol

• Message Framing: All messages use COBS encoding with a trailing zero
• Command Structure: Two-byte header (domain and message type) plus optional payload
• Response Handling: Aggregates multiple chunks until the message is complete
• Data Serialization: Uses Protocol Buffers for encoding/decoding structured messages

Debugging

Enable detailed logging for troubleshooting:

import logging
logging.basicConfig(level=logging.DEBUG, format='%(asctime)s - %(levelname)s - %(message)s')
