🎵 VS Code Music Visualizer

Transform your code editor into a real-time music visualizer using multiline cursors. Watch code dance to music as frequency analysis drives dynamic cursor positioning.

Installation

1. Open VS Code Extensions (Ctrl+Shift+X / Cmd+Shift+X)
2. Search "Multiline Cursor Audio Visualizer"
3. Click Install

Install from Marketplace →

Gallery & Usage

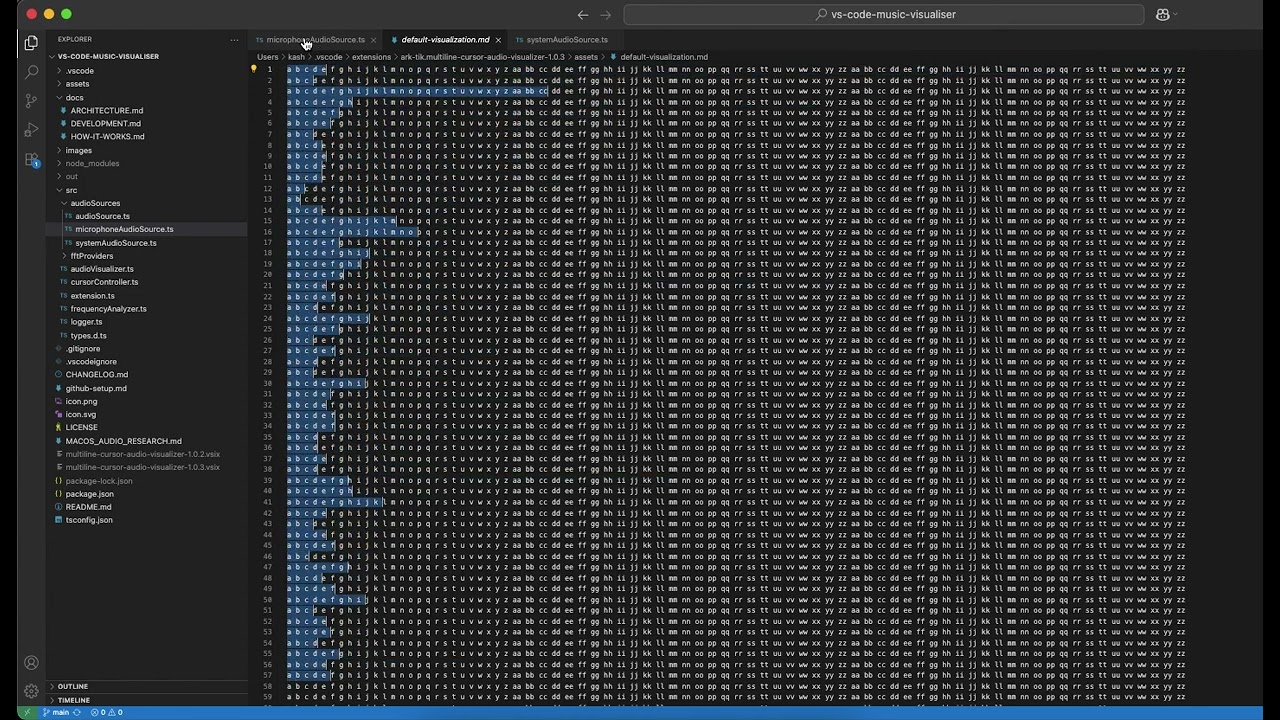

Live Visualization (youtube video)

Real-time cursor movement responding to audio frequencies - each cursor represents a frequency band positioned by amplitude.

Available Commands

Access via Command Palette (Ctrl+Shift+P):

• Audio Visualizer: Start (Microphone) - Captures microphone input for live performance visualization
• Audio Visualizer: Start (System Audio) - Captures computer audio output for music visualization
• Audio Visualizer: Stop - Stops the visualization
• Audio Visualizer: Configure - Opens extension settings

Configuration Settings

Customize through VS Code settings:

• Sensitivity (0.1-5.0) - Audio response strength
• Update Rate (30-120 FPS) - Visualization refresh rate
• Cursor Count (8-256) - Number of frequency bands
• Auto Configure - Matches cursor count to visible lines
• Smoothing (0.0-1.0) - Movement fluidity
• Debug Logging - Troubleshooting output

Setup Instructions

Microphone Mode (Works Immediately)

1. Open any text file
2. Run "Audio Visualizer: Start (Microphone)"
3. Start speaking/playing music - cursors respond instantly

System Audio Mode

macOS Setup (Required)

System audio requires additional setup on macOS:

Step 1: Create Multi-Output Device

• Open Audio MIDI Setup (/Applications/Utilities/)
• Click + → Create Multi-Output Device

Step 2: Configure Device

• Check Built-in Output
• Check BlackHole 2ch (Download BlackHole)
• Enable Drift Correction for Built-in Output only

Step 3: Select Audio Output

• Open System Settings → Sound
• Select your new Multi-Output Device

Step 4: Start Visualization

• Run "Audio Visualizer: Start (System Audio)"
• Play music - cursors respond to system audio

⚠️ Note ⚠️: When Multi-Output Device is selected, volume controls are disabled. Switch back to Built-in Output for normal volume control.

Windows/Linux

• Windows: Enable "Stereo Mix" in Sound settings
• Linux: Extension detects PulseAudio monitor devices automatically

Use Cases

• 🖥️ Dual Monitor Setup: Open visualizer in separate VS Code window on second monitor for ambient visual experience
• 🎵 Music Visualization: Use system audio mode to create live music visuals while working
• 🎙️ Live Streaming: Use microphone mode during coding streams for interactive audio visualization
• 🎤 Presentations: Demonstrate with live audio visualization effects

Troubleshooting

No Audio Detected:

• Check microphone permissions for VS Code
• Try microphone mode first to verify extension works
• Enable debug logging in settings

Performance Issues:

• Lower update rate to 30 FPS
• Reduce cursor count
• Disable debug logging

Documentation

For curious developers and contributors:

• 📖 How It Works - Audio processing and FFT explained
• 🏗️ Architecture - Technical architecture overview
• 🔧 Development - Build from source and contribute

---
