Hash-Chaining Camera for Jetson Orin Nano

A real-time provenance tracking camera system using Ed25519 digital signatures and SHA-256 hash chaining. Designed specifically for Jetson Orin Nano with GStreamer hardware acceleration.

Features

• Hardware-accelerated capture using Jetson's GStreamer elements
• Cryptographic provenance with Ed25519 + SHA-256 hash chaining
• Real-time dashboard with live preview and chain monitoring
• Tamper detection with immediate visual feedback
• Zero external dependencies - uses only Node.js built-ins

Quick Start

Prerequisites (run these commands on your Jetson)

# Install GStreamer and camera utilities
sudo apt-get update
sudo apt-get install -y gstreamer1.0-tools gstreamer1.0-plugins-good \
                        gstreamer1.0-plugins-bad v4l-utils

# Ensure nvargus-daemon is running (for CSI cameras)
sudo systemctl status nvargus-daemon

Setup and Run

# Navigate to the project
cd hash-chaining-camera

# Generate Ed25519 keypair
npm run generate-keys

# Configure camera (edit config.json)
# For CSI camera: set "camera": "CSI"
# For USB camera: set "camera": "USB" and adjust "usbDevice"

# Start the real-time dashboard
npm run demo:dashboard

Open http://your-jetson-ip:8080 in your browser.

Project Structure

hash-chaining-camera/
├── package.json          # npm scripts and metadata
├── config.json          # Camera configuration
├── server.js            # Main server with GStreamer + SSE
├── generate_keys.js     # Ed25519 keypair generation
├── ingest.js           # Hash chain ingestion
├── verify.js           # Chain verification
├── ai_quality.py       # Optional quality assessment
├── keys/               # Ed25519 keys (generated)
├── images/             # Captured frames
├── scripts/
│   └── tamper_one.js   # Tamper demonstration
└── public/             # Dashboard assets
    ├── index.html      # Main dashboard
    ├── app.js          # Real-time client
    └── styles.css      # Dashboard styling

Configuration

Edit config.json to match your setup:

{
  "camera": "CSI",              // "CSI" or "USB"
  "usbDevice": "/dev/video0",   // USB camera device path
  "width": 1920,               // Capture resolution
  "height": 1080,
  "jpegQuality": 85,           // JPEG compression quality
  "captureIntervalMs": 2000    // Capture interval
}

Camera Setup

For CSI (MIPI) cameras:

• Uses nvarguscamerasrc with hardware JPEG encoding
• Requires nvargus-daemon to be running

For USB cameras:

• First tries MJPEG fast path (v4l2src → jpegparse)
• Falls back to raw conversion (v4l2src → nvvidconv → nvjpegenc)

List your USB cameras:

v4l2-ctl --list-devices

Usage

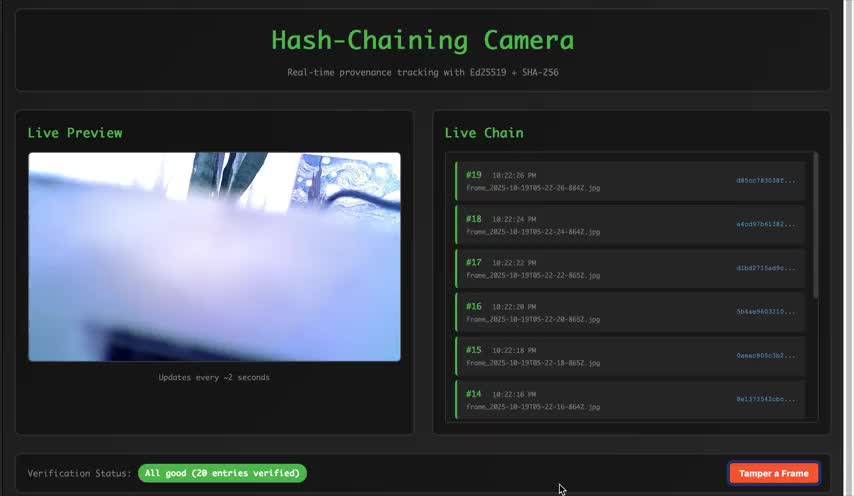

Dashboard Features

• Live Preview: Shows camera feed, updates every ~2 seconds
• Chain Log: Real-time hash chain entries with timestamps
• Status Indicator:
  • 🟢 Green = All verifications pass
  • 🔴 Red blinking = Tamper detected
• Tamper Button: Demonstrates tampering by corrupting a random frame

Command Line Tools

# Generate new keypair
npm run generate-keys

# Manually ingest a frame
npm run ingest images/frame_2024-01-01T12-00-00-000Z.jpg

# Verify entire chain
npm run verify

# Tamper with a random frame (for demo)
npm run tamper-demo

How It Works

Hash Chaining

1. Each frame is captured and saved with timestamp
2. Frame content is hashed (SHA-256)
3. Chain entry combines: index, timestamp, frame hash, previous chain hash
4. Entry is digitally signed with Ed25519 private key
5. Entry hash becomes the new chain head

Verification

1. Verifies each frame file exists and matches stored hash
2. Validates Ed25519 signatures with public key
3. Confirms hash chain linkage (each entry references previous)
4. Detects any tampering immediately

GStreamer Pipelines

CSI Camera:

gst-launch-1.0 -e nvarguscamerasrc num-buffers=1 ! \
  "video/x-raw(memory:NVMM),width=1920,height=1080,format=NV12,framerate=30/1" ! \
  nvjpegenc quality=85 ! \
  filesink location=images/latest.jpg

USB Camera (MJPEG):

gst-launch-1.0 -e v4l2src device=/dev/video0 num-buffers=1 ! \
  image/jpeg,width=1920,height=1080,framerate=30/1 ! \
  jpegparse ! \
  filesink location=images/latest.jpg

USB Camera (Raw fallback):

gst-launch-1.0 -e v4l2src device=/dev/video0 num-buffers=1 ! \
  "video/x-raw,format=YUY2,width=1920,height=1080,framerate=30/1" ! \
  nvvidconv ! \
  nvjpegenc quality=85 ! \
  filesink location=images/latest.jpg

Troubleshooting

Port 8080 in use

# Find what's using port 8080
sudo lsof -i :8080

# Kill the process or change PORT in server.js

CSI Camera Issues

# Check nvargus-daemon status
sudo systemctl status nvargus-daemon

# Restart if needed
sudo systemctl restart nvargus-daemon

# Check for camera hardware
ls /dev/video*

USB Camera Issues

# List available cameras
v4l2-ctl --list-devices

# Test camera capabilities
v4l2-ctl --device=/dev/video0 --list-formats-ext

# Check supported resolutions
v4l2-ctl --device=/dev/video0 --list-framesizes=MJPG

GStreamer Debug

Add GST_DEBUG=3 environment variable for detailed logging:

GST_DEBUG=3 npm run demo:dashboard

Demo Presentation Script

1. Open dashboard: http://jetson-ip:8080
2. Show live preview: Camera feed updating every 2 seconds
3. Show growing chain: Each capture creates a new hash-chained entry
4. Click "Tamper a Frame": Dashboard flashes red with tamper detection
5. Explain: "Any altered data breaks the chain, proving tampering occurred"
6. Show recovery: New frames continue building the chain

Performance Notes

• Hardware JPEG encoding provides excellent performance
• 1920x1080 @ 85% quality ≈ 200-500KB per frame
• Chain verification is near-instantaneous
• Dashboard supports 50+ concurrent chain entries
• Memory usage remains stable during extended operation

Security

• Ed25519: Industry-standard elliptic curve digital signatures
• SHA-256: Cryptographically secure hashing
• No network keys: All cryptography happens locally
• Immutable chain: Any tampering breaks cryptographic verification
• Timestamp integrity: Prevents replay attacks

API Reference

Server Endpoints:

• GET / - Dashboard homepage
• GET /latest.jpg - Current camera frame
• GET /events - Server-Sent Events stream
• POST /tamper - Tamper with random frame (demo only)

SSE Events:

• chain_head - New frame ingested
• verify_ok - Verification passed
• verify_fail - Tamper detected
• tampered - Frame tampered (demo)
• error - System error

Help Wanted

We welcome contributions! Here are some bite-sized tasks to get started:

Easy Tasks (Good First Issues)

• Improve dashboard visuals: Add better styling, animations, or color themes
• Add frame thumbnails: Show small previews in the chain log
• Export functionality: Add buttons to export chain data as CSV/JSON
• Configuration UI: Build a web interface to edit config.json
• Better error messages: Make verification errors more user-friendly

Medium Tasks

• Add IMU logging: Integrate accelerometer/gyroscope data into each frame entry
• GPS coordinates: Include location data in the provenance chain
• Multiple camera support: Allow switching between multiple USB cameras
• Frame compression: Add options for different image formats (WebP, HEIF)
• Docker support: Create Dockerfile for easy deployment

Advanced Tasks

• Mobile app: Build React Native/Flutter app to view chains remotely
• Blockchain integration: Store chain hashes on-chain for immutable audit trail
• Hardware security: Integrate with TPM/HSM for key storage
• Real-time streaming: Add WebRTC for live video streaming with provenance
• Machine learning: Add AI-based tamper detection beyond hash verification

Documentation

• Tutorial videos: Create setup and demo videos for different platforms
• API documentation: Document all endpoints and SSE events
• Security analysis: Write whitepaper on cryptographic guarantees
• Performance benchmarks: Test and document frame rates, storage usage

Contributing: Fork the repo, pick a task, and submit a pull request! For larger features, open an issue first to discuss the approach.

---

Built for audit-proof provenance tracking on Jetson Orin Nano
